ADF04STTR04

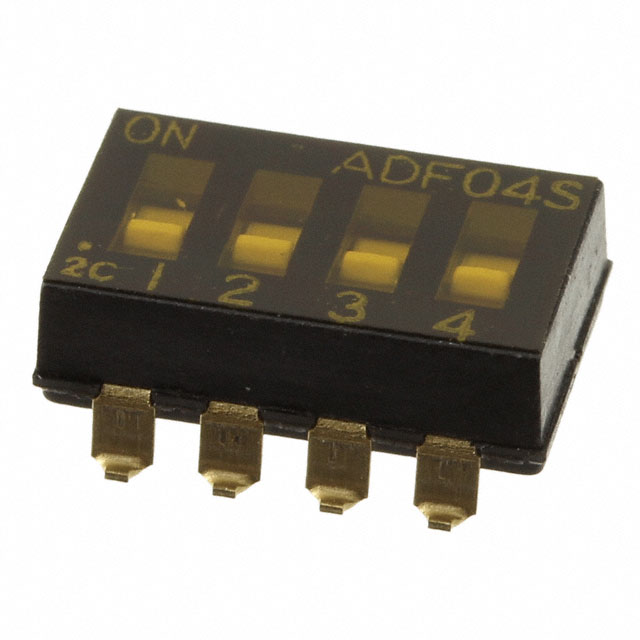

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADF04STTR04 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADF04STTR04 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADF04STTR04 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH SLIDE DIP SPST 100MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 7500 pcs | |||
|---|---|---|---|---|---|
| $0.381 | $0.333 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADF04STTR04 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56628 pcs | Data sheet | Switches Core Program Catalog1825059 Drawing |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | ADF | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tape & Reel (TR) | Other Names | 1-1825059-8 1-1825059-8-ND 1438876 450-2041-2 |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 15 Weeks |
| Length | 0.478" (12.14mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.177" (4.50mm) | Features | Tape Seal |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
