966926-5

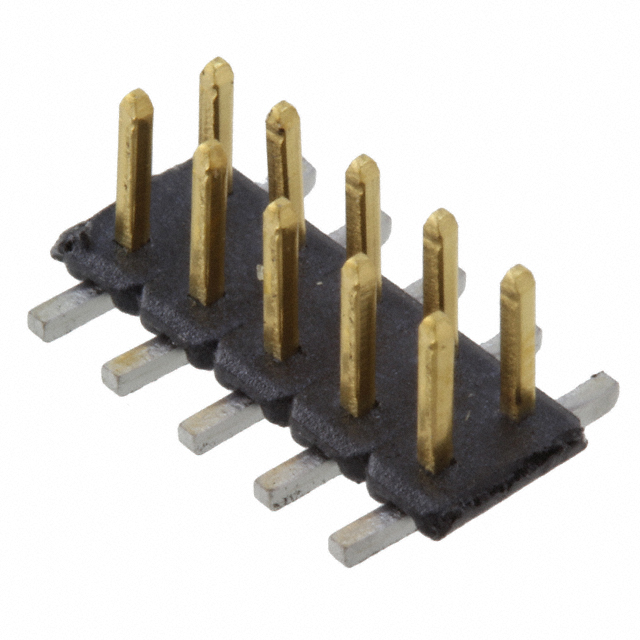

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 966926-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 966926-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 966926-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | AMP MODU 2MM PIN HEADER 2X 5P SM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.338 | $3.193 | $2.903 | $2.758 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.685 | $2.395 | $2.25 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 966926-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMP MODU 2MM PIN HEADER 2X 5P SM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15035 pcs | Data sheet | 966926 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A118024CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.035" (0.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 10 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.136" (3.45mm) | Contact Finish Thickness - Post | 98.4µin (2.50µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
