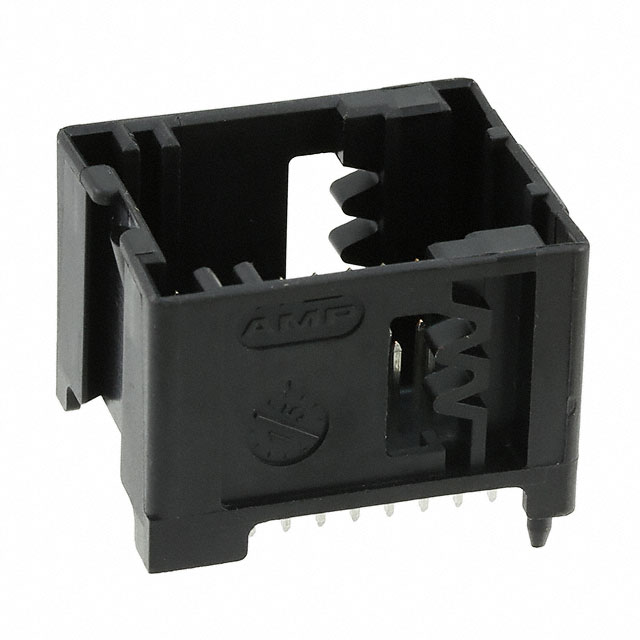

953118-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 953118-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 953118-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 953118-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 40POS VERT TIN .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.989 | $1.91 | $1.591 | $1.353 | $1.154 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 953118-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 40POS VERT TIN .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30804 pcs | Data sheet | 953118 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro Quadlok |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 953118-1-ND A122676 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.846" (21.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.115" (2.92mm) | Contact Length - Mating | 0.264" (6.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
