917845-1

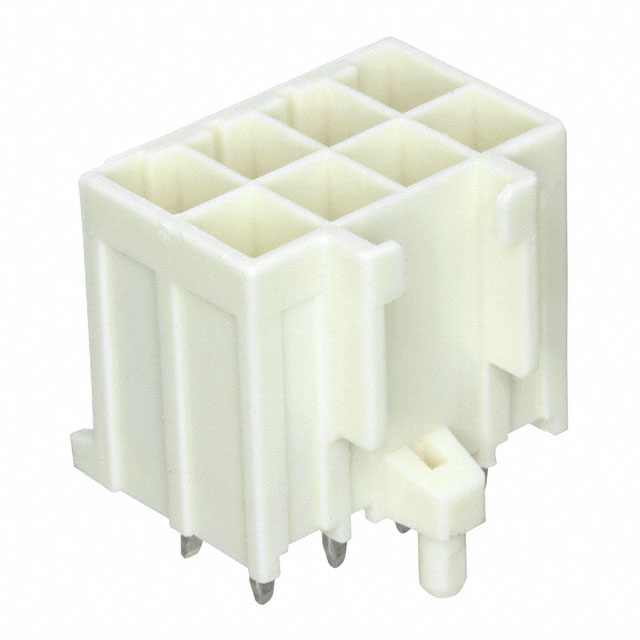

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 917845-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 917845-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 917845-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | POWER TAB CONN RCPT HDR ASSY 8P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.00 | $0.96 | $0.88 | $0.84 | $0.80 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.70 | $0.68 | $0.58 | $0.54 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 917845-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | POWER TAB CONN RCPT HDR ASSY 8P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55614 pcs | Data sheet | 917845 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Power Double Lock |
| Row Spacing - Mating | 0.181" (4.60mm) | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 917845-1-ND A131121 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.575" (14.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
