917724-1

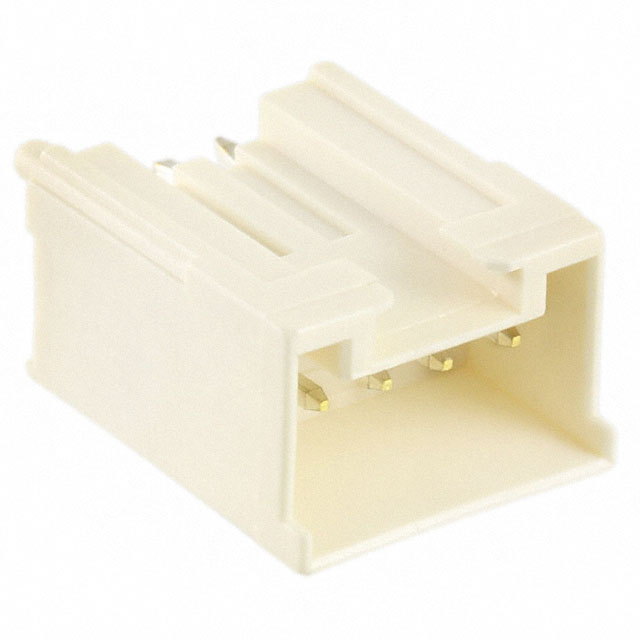

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 917724-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 917724-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 917724-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 2.5 S.D.LOCK HDR ASSY 4P H/PRO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.303 | $0.266 | $0.23 | $0.188 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.167 | $0.146 | $0.139 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 917724-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 2.5 S.D.LOCK HDR ASSY 4P H/PRO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156259 pcs | Data sheet | 917724 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Signal Double Lock |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.626" (15.90mm) |
| Other Names | A119370 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 19.2mm | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.602" (15.29mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 4 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.185" (4.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
