9-2823056-0

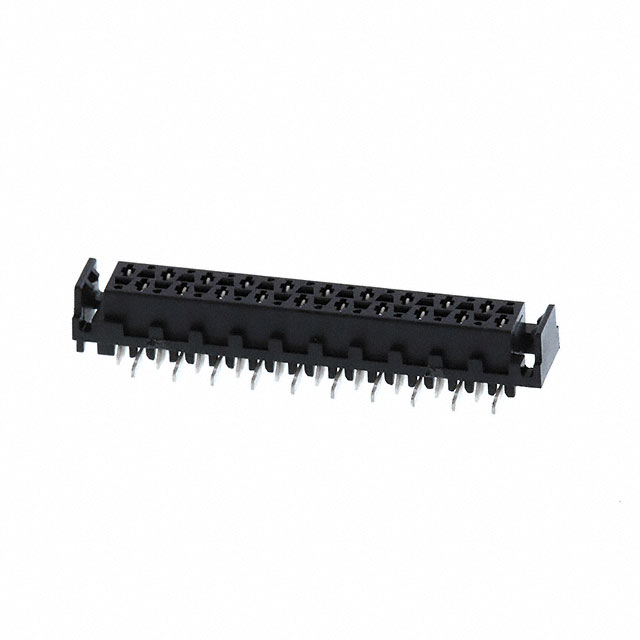

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9-2823056-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9-2823056-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9-2823056-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 20P,FOB,SMD W/ LATCH,P&P, MM VAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1800 pcs | 3600 pcs | 5400 pcs | ||
|---|---|---|---|---|---|
| $0.605 | $0.584 | $0.562 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9-2823056-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 20P,FOB,SMD W/ LATCH,P&P, MM VAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53592 pcs | Data sheet | 2823056 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 9-2823056-0-ND A125138TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 35 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.209" (5.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | - |
| Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
