9-1534796-3

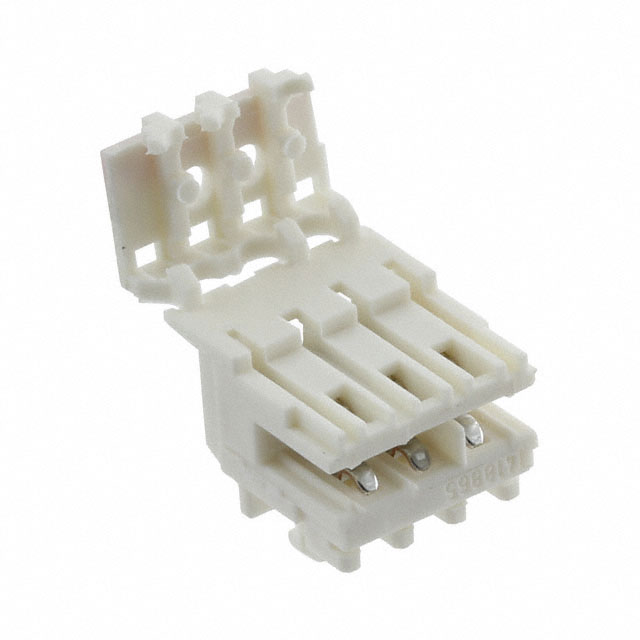

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9-1534796-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9-1534796-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9-1534796-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | AMP DUOPLUG MK2 CONNECTOR 3P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 15400 pcs | ||||
|---|---|---|---|---|---|
| $0.047 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9-1534796-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMP DUOPLUG MK2 CONNECTOR 3P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 432806 pcs | Data sheet | 1534796 DrawingAmp Duoplug Connector |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22-24 AWG | Series | DuoPlug |
| Row Spacing | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | A117758 |
| Number of Rows | 1 | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Mates to PCB | Fastening Type | - |
| Detailed Description | 3 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG | Contact Type | Female Blade Socket |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector Type | Receptacle | Color | Natural |
| Cable Termination | IDC |
