9-146500-0

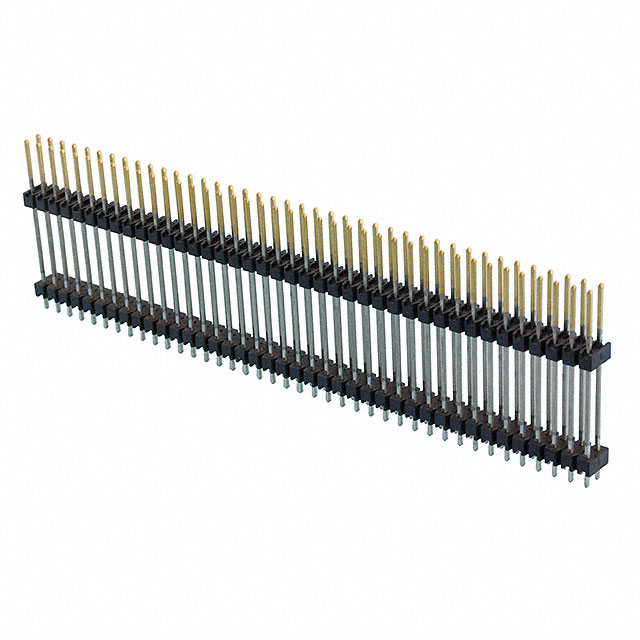

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9-146500-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9-146500-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9-146500-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADR 80POS .100" DUAL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $12.004 | $10.836 | $9.409 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9-146500-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADR 80POS .100" DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3717 pcs | Data sheet | 146500 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | AMPMODU Mod II | Row Spacing | 0.100" (2.54mm) |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Number of Rows | 2 | Number of Positions | 80 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Tail | 0.100" (2.540mm) |
| Length - Stack Height | 0.700" (17.780mm) | Length - Post (Mating) | 0.330" (8.382mm) |
| Length - Overall Pin | 1.130" (28.700mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 80 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole | Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) |
| Contact Finish - Post (Mating) | Gold | Color | Black |
