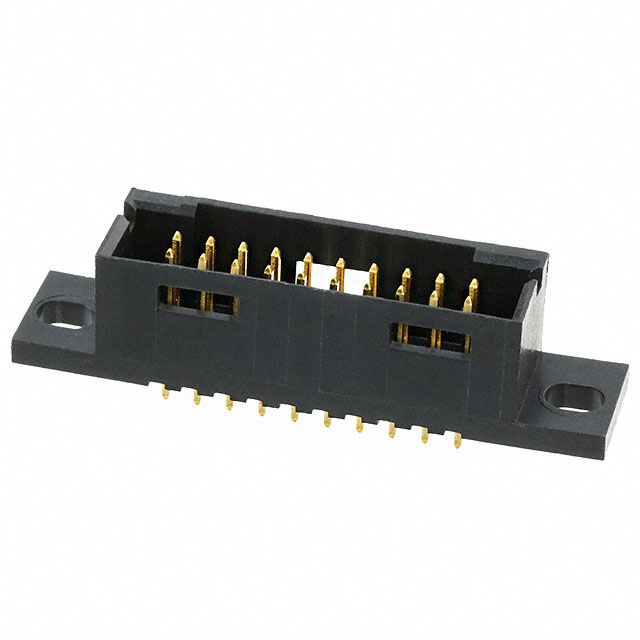

87474-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87474-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87474-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87474-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER .100 20POS DL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 672 pcs | ||||
|---|---|---|---|---|---|
| $1.354 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87474-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER .100 20POS DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27661 pcs | Data sheet | 87474 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.533" (13.55mm) |
| Other Names | 87474-2-ND A115695 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.440" (11.18mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
