87258-3

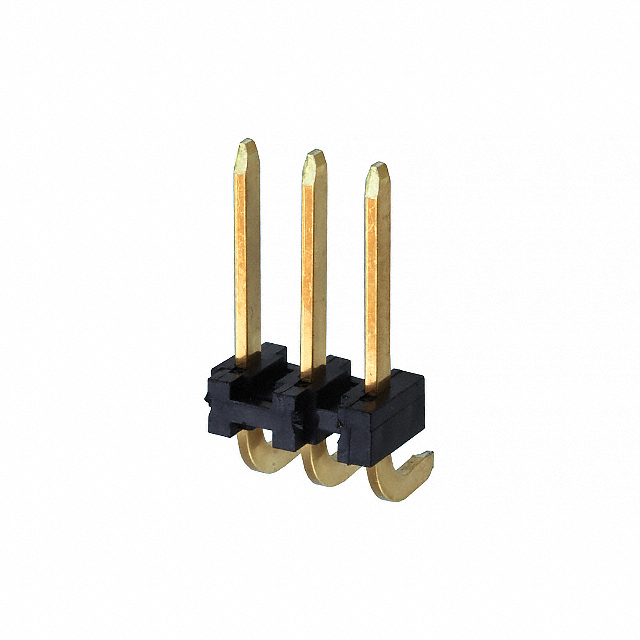

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87258-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87258-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87258-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 3POS R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.241 | $1.191 | $0.992 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.843 | $0.719 | $0.645 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87258-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47888 pcs | Data sheet | 87258 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod I |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 87258-3-ND A114569 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.500" (12.70mm) |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
