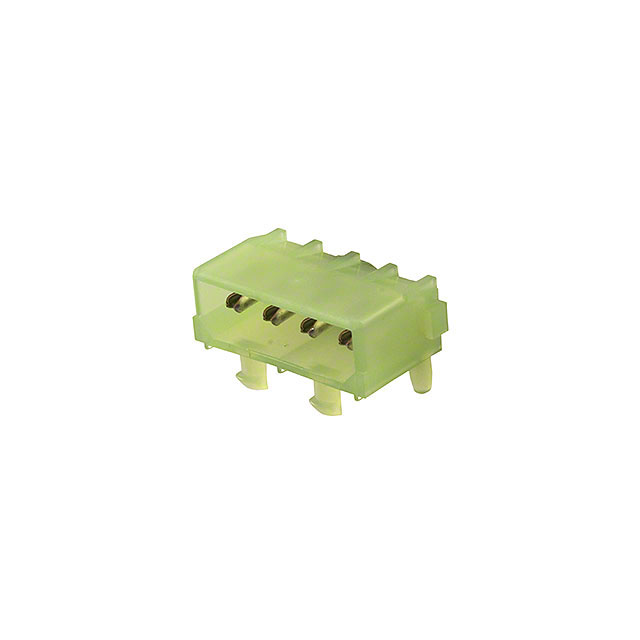

827001-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 827001-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 827001-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 827001-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 4P MNL STIFTSOCKEL |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.363 | $2.263 | $2.066 | $1.968 | $1.87 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.673 | $1.574 | $1.378 | $1.309 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 827001-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 4P MNL STIFTSOCKEL | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 23166 pcs | Data sheet | 827001 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119375 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.330" (8.38mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm) | Current Rating | 12A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
