826845-3

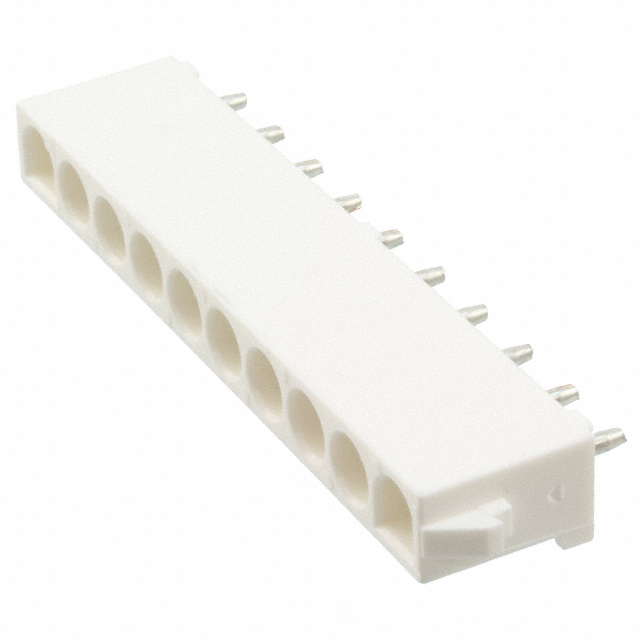

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 826845-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 826845-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 826845-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 10P UN-MNL ST SOCK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.776 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 826845-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10P UN-MNL ST SOCK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40838 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet8268xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Universal MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A109238 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.581" (14.75mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 10 position 0.250" (6.35mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
