Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 826632-4

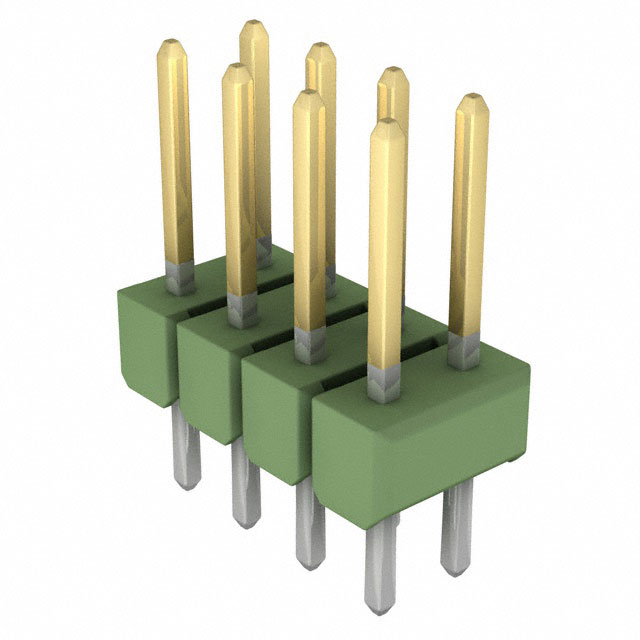

826632-4

826632-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 826632-4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 826632-4
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 8POS BRKWY VERT GOLD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 124428 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.40$0.352$0.304$0.248
1000 pcs5000 pcs10000 pcs
$0.221$0.193$0.184

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.40

Product parameter

Part Number 826632-4 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 8POS BRKWY VERT GOLD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 124428 pcs Data sheet AMPMOU II Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board or Cable
Shrouding Unshrouded Series AMPMODU Mod II
Row Spacing - Mating 0.100" (2.54mm) Pitch - Mating 0.100" (2.54mm)
Packaging Bulk Overall Contact Length 0.500" (12.70mm)
Other Names 826632-4-ND
8266324
A106756		 Operating Temperature -65°C ~ 105°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 8 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 36 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polybutylene Terephthalate (PBT)
Insulation Height 0.110" (2.79mm) Insulation Color Green
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description Connector Header Through Hole 8 position 0.100" (2.54mm)
Current Rating 5A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.126" (3.20mm) Contact Length - Mating 0.264" (6.70mm)
Contact Finish Thickness - Post 118.1µin (3.00µm) Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header, Breakaway Applications -
