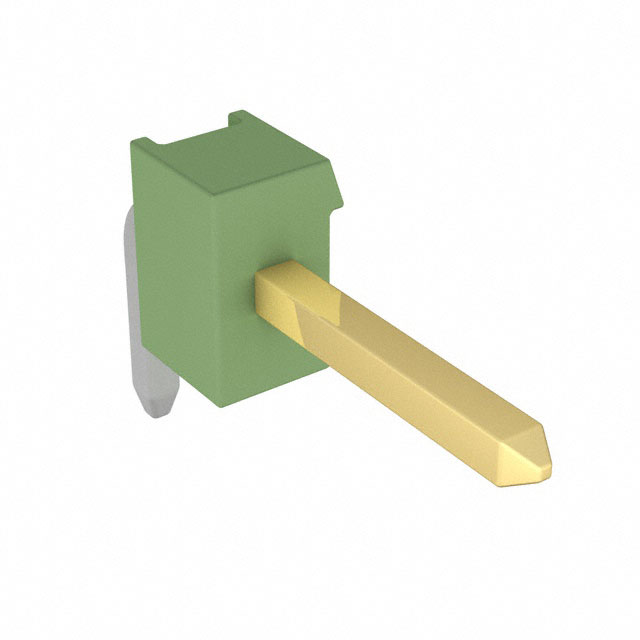

826631-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 826631-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 826631-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 826631-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 1P AMPMODU II STIFT LEI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6000 pcs | ||||
|---|---|---|---|---|---|
| $0.056 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 826631-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 1P AMPMODU II STIFT LEI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 350313 pcs | Data sheet | AMPMOU II Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.120" (3.05mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 1 position | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.264" (6.70mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
