825457-3

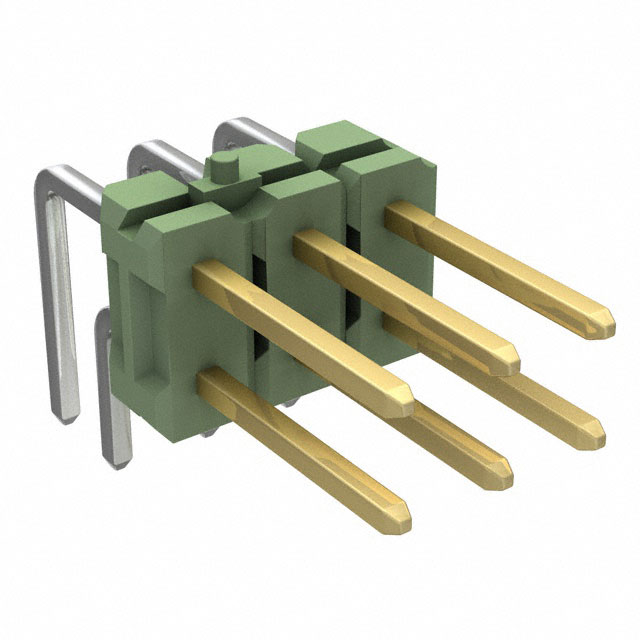

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 825457-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 825457-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 825457-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MOD II HSG R.A. 6 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.415 | $0.377 | $0.323 | $0.269 | $0.231 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 825457-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MOD II HSG R.A. 6 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92017 pcs | Data sheet | 825457 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 825457-3-ND A122907 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.264" (6.70mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
