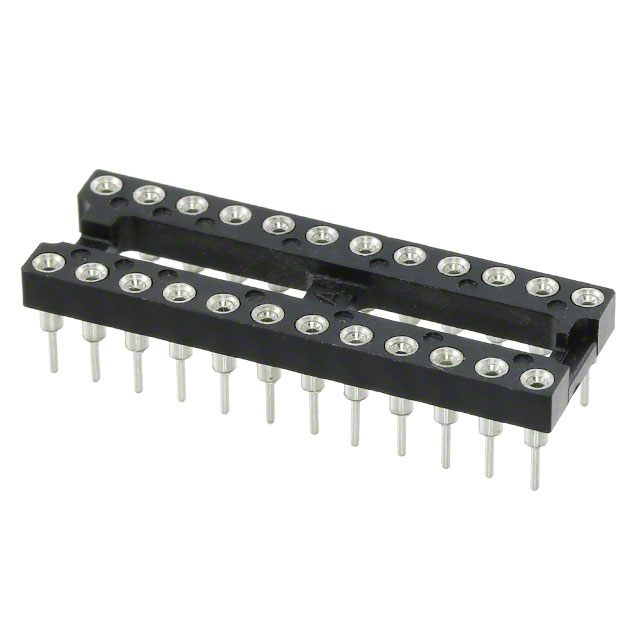

824-AG32D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 824-AG32D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 824-AG32D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 824-AG32D |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 24POS TINLEAD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 824-AG32D | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 24POS TINLEAD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5574 pcs | Data sheet | 800 Series Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 9-1437537-2 9-1437537-2-ND A114589 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polyester |
| Features | Open Frame | Current Rating | 3A |
| Contact Resistance | 10 mOhm | Contact Material - Post | Copper Alloy |
| Contact Material - Mating | Copper Alloy | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead |
