820-AG11D-ESL-LF

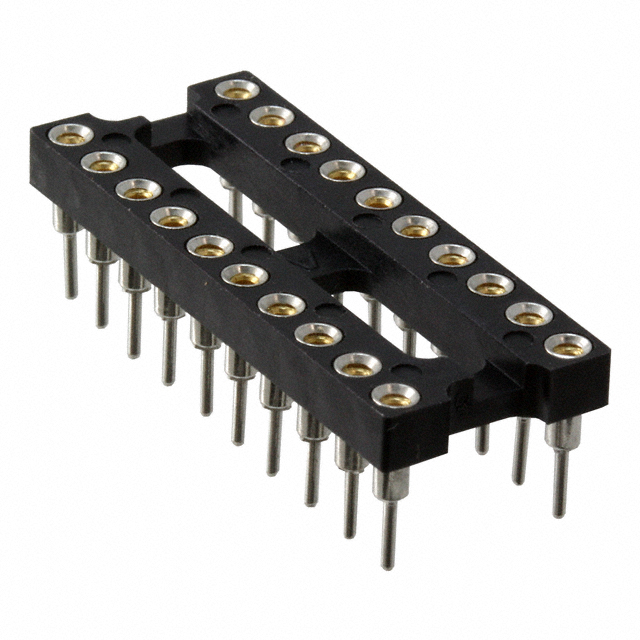

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 820-AG11D-ESL-LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 820-AG11D-ESL-LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 820-AG11D-ESL-LF |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 20POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 48 pcs | 72 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.926 | $0.841 | $0.789 | $0.755 | $0.721 | |
| 264 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.652 | $0.60 | $0.515 | $0.48 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 820-AG11D-ESL-LF | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79202 pcs | Data sheet | 1571552 Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 2-1571552-6 2-1571552-6-ND 215715526 A106188 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | Open Frame |
| Contact Resistance | 10 mOhm | Contact Material - Post | Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
