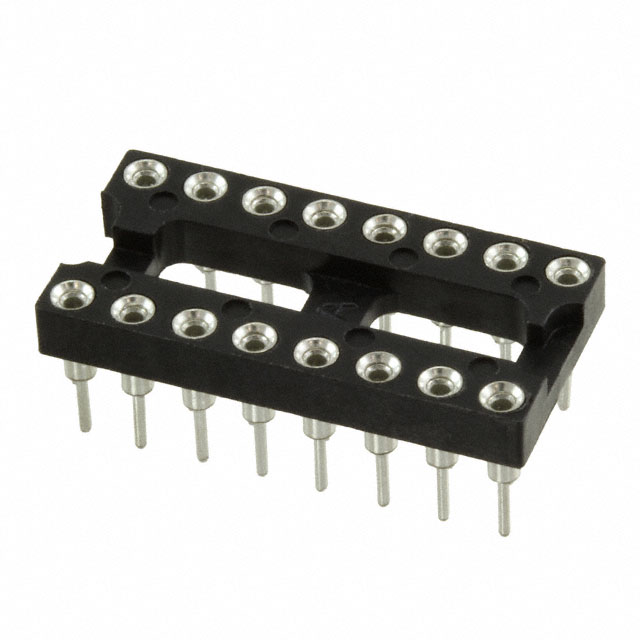

816-AG12D-ES-LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 816-AG12D-ES-LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 816-AG12D-ES-LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 816-AG12D-ES-LF |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN IC DIP SOCKET 16POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.029 | $0.987 | $0.905 | $0.864 | $0.823 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.72 | $0.699 | $0.596 | $0.555 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 816-AG12D-ES-LF | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 16POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58953 pcs | Data sheet | 1571552 Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 1571552-4 1571552-4-ND A122748 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 16 (2 x 8) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | Open Frame |
| Contact Resistance | 10 mOhm | Contact Material - Post | Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
