8-917541-2

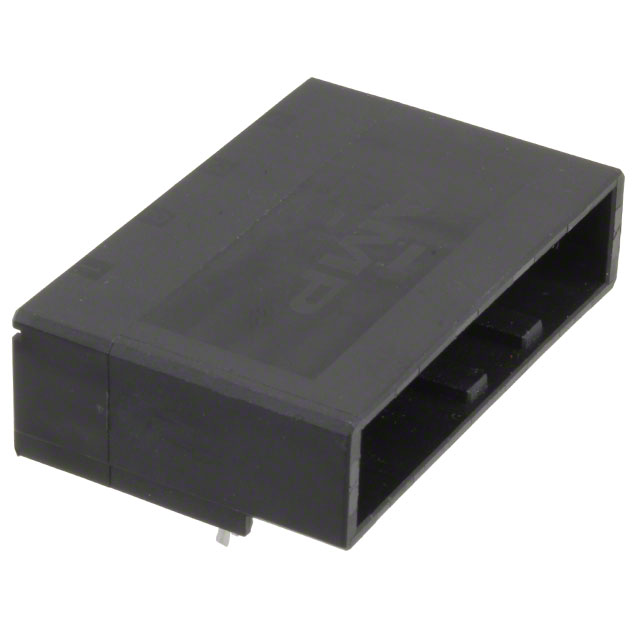

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-917541-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-917541-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-917541-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D-5200S H-HDR ASSY 4P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 30 pcs | |
|---|---|---|---|---|---|
| $2.606 | $2.476 | $2.216 | $2.151 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-917541-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D-5200S H-HDR ASSY 4P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17412 pcs | Data sheet | 917541 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 630V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-5200 |
| Row Spacing - Mating | - | Pitch - Mating | 0.400" (10.16mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A120760 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.547" (13.90mm) | Insulation Color | Black |
| Ingress Protection | IP20 | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.400" (10.16mm) |
| Current Rating | 30A | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
