8-696302-1

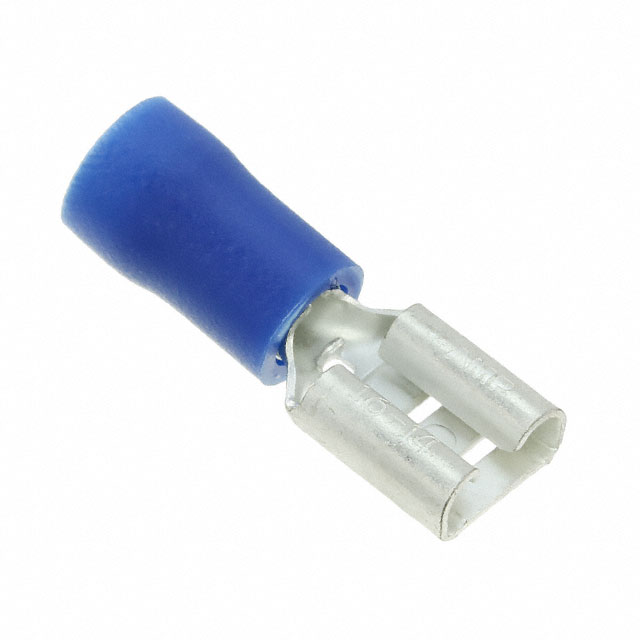

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-696302-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-696302-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-696302-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN QC RCPT 14-16AWG 0.250 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-696302-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN QC RCPT 14-16AWG 0.250 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4734 pcs | Data sheet | 696302 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Termination | Crimp | Terminal Type | Standard |
| Tab Width | 0.250" (6.35mm) | Tab Thickness | 0.032" (0.81mm) |
| Tab Length | 0.301" (7.65mm) | Series | Faston |
| Packaging | Bulk | Other Names | 8-696302-1-ND A122666 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Overall | 0.864" (21.94mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.110" ~ 0.165" (2.79mm ~ 4.19mm) | Insulation | Non-Mating End Insulated |
| Gender | Female | Features | - |
| Detailed Description | 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated | Contact Material | Brass |
| Contact Finish | Tin | Color | Blue |
