8-54771-1

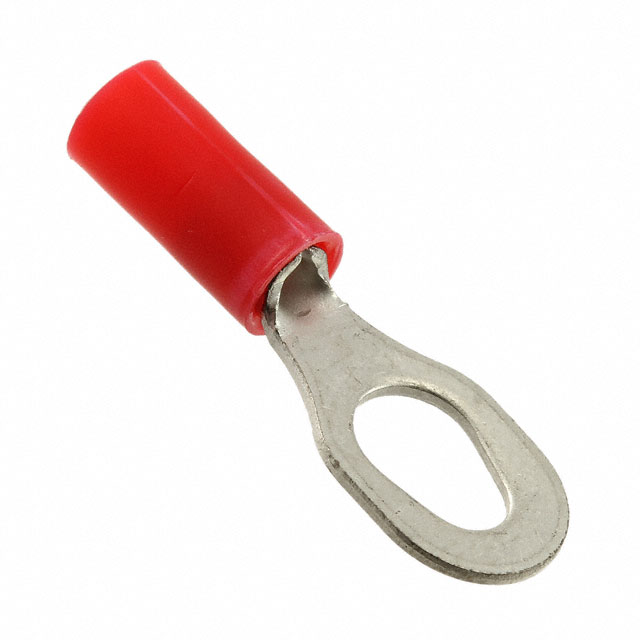

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-54771-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-54771-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-54771-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING MULT STUD 16-22AWG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.353 | $0.309 | $0.291 | $0.279 | $0.266 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.242 | $0.218 | $0.194 | $0.176 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-54771-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING MULT STUD 16-22AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 119188 pcs | Data sheet | 54771 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.325" (8.26mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Multi-Stud |
| Stud/Tab Size | 6, 8, 10 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 8-54771-1-ND A136843 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Overall | 0.957" (24.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 6, 8, 10 Stud Multi-Stud 16-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
