8-5353015-1

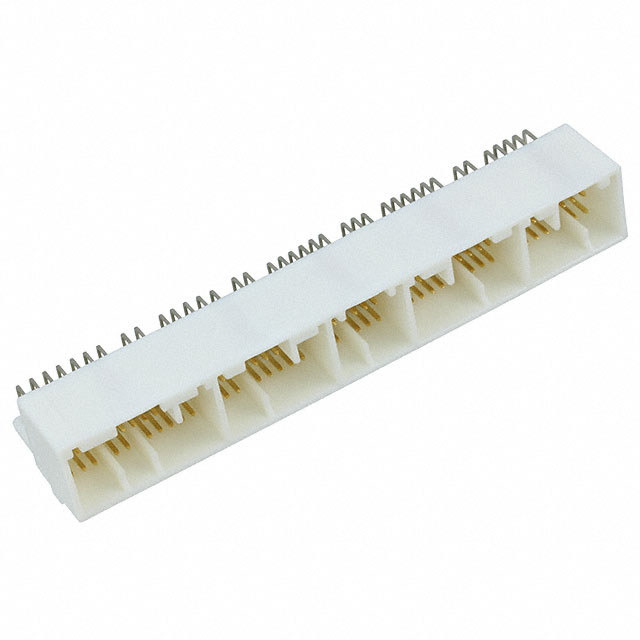

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-5353015-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-5353015-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-5353015-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 122POS R/A GOLD T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $7.548 | $7.009 | $5.391 | $4.924 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-5353015-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 122POS R/A GOLD T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6765 pcs | Data sheet | 353015 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Multi-Lock |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 8-5353015-1-ND A123262 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 122 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.886" (22.50mm) | Insulation Color | - |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 122 position |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | - | Applications | Automotive, General Purpose |
