8-52369-1

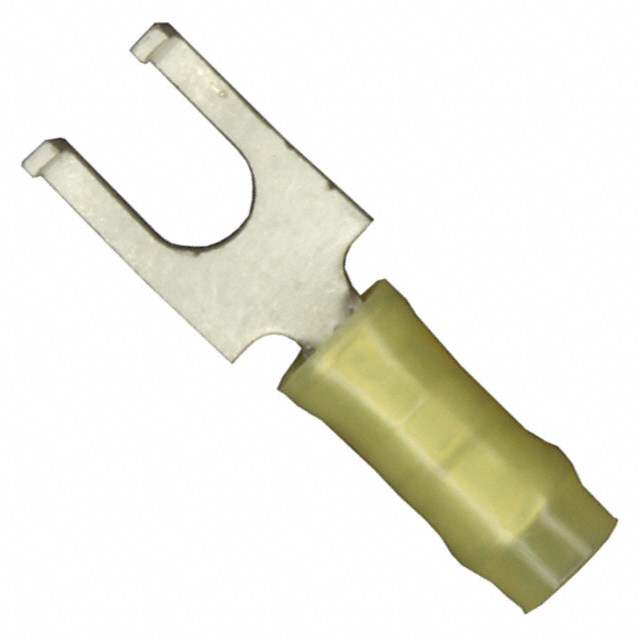

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-52369-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-52369-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-52369-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 22-26AWG #4 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-52369-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 22-26AWG #4 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4878 pcs | Data sheet | 52369 |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Width - Outer Edges | 0.196" (4.98mm) | Tongue Inside Opening | 0.119" (3.02mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 4 Stud | Series | PIDG |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Length - Termination | 0.331" (8.41mm) | Length - Ring Center to Termination | 0.203" (5.16mm) |
| Length - Overall | 0.667" (16.94mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.050" ~ 0.082" (1.27mm ~ 2.08mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 4 Stud Spade Terminal Connector Crimp 22-26 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
