8-338728-0

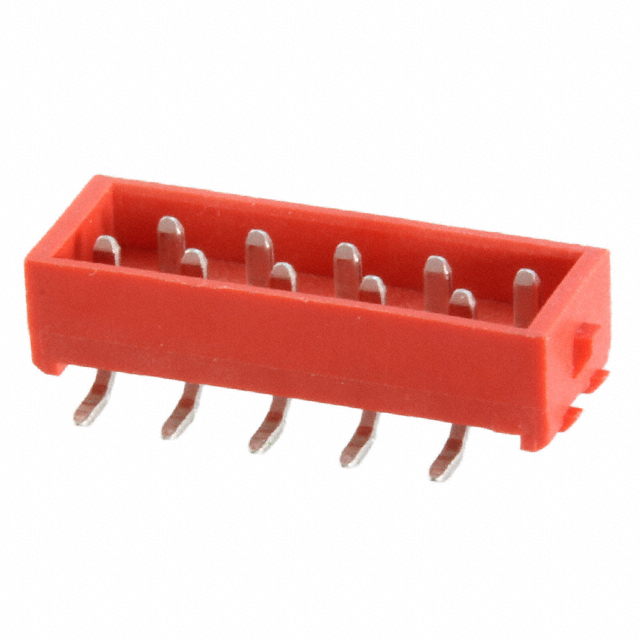

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-338728-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-338728-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-338728-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 10POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.714 | $0.646 | $0.554 | $0.462 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-338728-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 10POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77806 pcs | Data sheet | 338728 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 230V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Micro-MaTch |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A116318CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.181" (4.60mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) | Current Rating | 1.5A |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
