8-326859-1

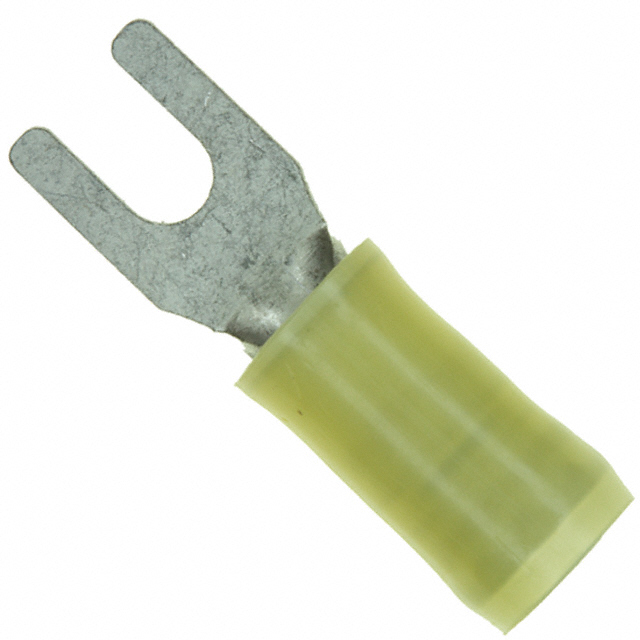

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-326859-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-326859-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-326859-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.256 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-326859-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #6 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92943 pcs | Data sheet | 326859 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.312" (7.92mm) | Tongue Inside Opening | 0.145" (3.68mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Termination | 0.591" (15.01mm) |
| Length - Ring Center to Termination | 0.296" (7.52mm) | Length - Overall | 1.095" (27.81mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG | Contact Material | Copper |
| Contact Finish | Tin | Color | Yellow |
