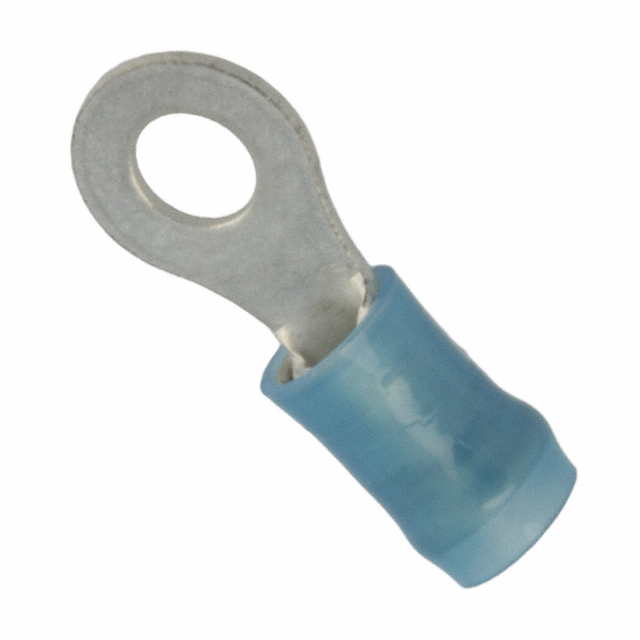

8-320565-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-320565-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-320565-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-320565-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 14-16AWG #8 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.209 | $0.194 | $0.175 | $0.155 | $0.149 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.136 | $0.129 | $0.107 | $0.097 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-320565-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #8 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 233085 pcs | Data sheet | 320565 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.343" (8.71mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 83205651 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Overall | 0.859" (21.82mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Blue |
