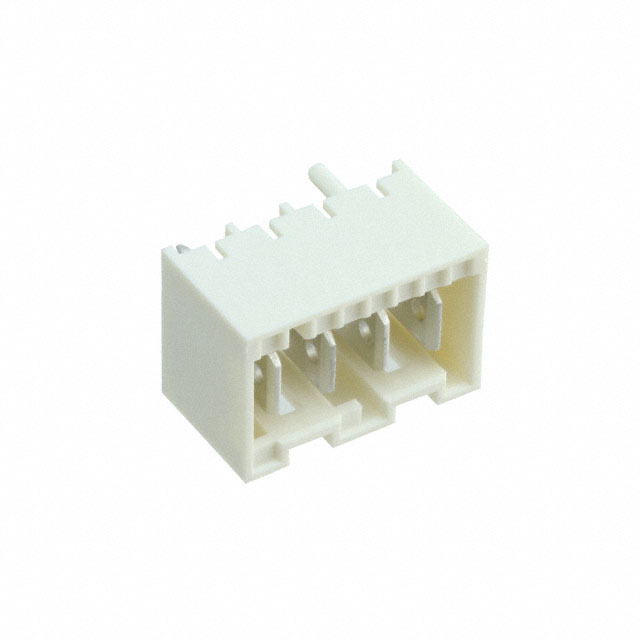

8-2232532-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-2232532-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-2232532-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-2232532-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 4P, RAST 5 TAB HEADER, THV, TUBE |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | 110 pcs |
|---|---|---|---|---|---|
| $0.328 | $0.288 | $0.271 | $0.26 | $0.249 | |
| 264 pcs | 506 pcs | 1012 pcs | 2508 pcs | ||
| $0.226 | $0.204 | $0.181 | $0.164 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-2232532-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 4P, RAST 5 TAB HEADER, THV, TUBE | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 133654 pcs | Data sheet | 2232 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A125858 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 4 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
