8-215464-6

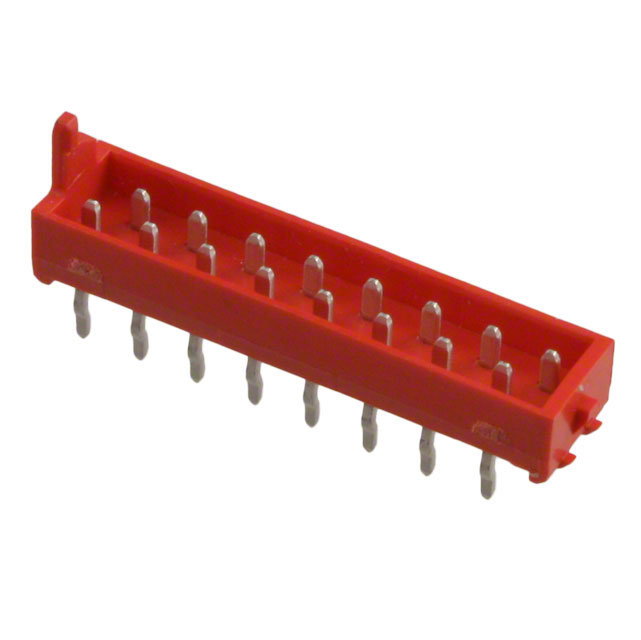

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-215464-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-215464-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-215464-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 16POS VERT DL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.886 | $0.852 | $0.71 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-215464-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 16POS VERT DL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43647 pcs | Data sheet | 215464 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 230V |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Micro-MaTch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A99441CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.142" (3.60mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | 1.5A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
