8-215079-8

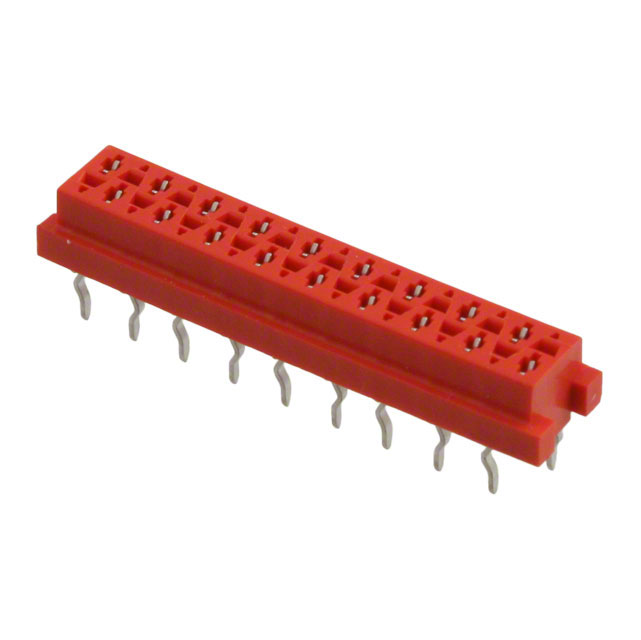

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-215079-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-215079-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-215079-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FMALE-ON-BRD 18POS VERT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | |
|---|---|---|---|---|---|
| $0.653 | $0.601 | $0.584 | $0.515 | ||
| 1750 pcs | 2500 pcs | 6250 pcs | |||
| $0.498 | $0.481 | $0.457 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-215079-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FMALE-ON-BRD 18POS VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72627 pcs | Data sheet | 215079 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Box (TB) |
| Other Names | 82150798 A99466TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose |
