8-188431-0

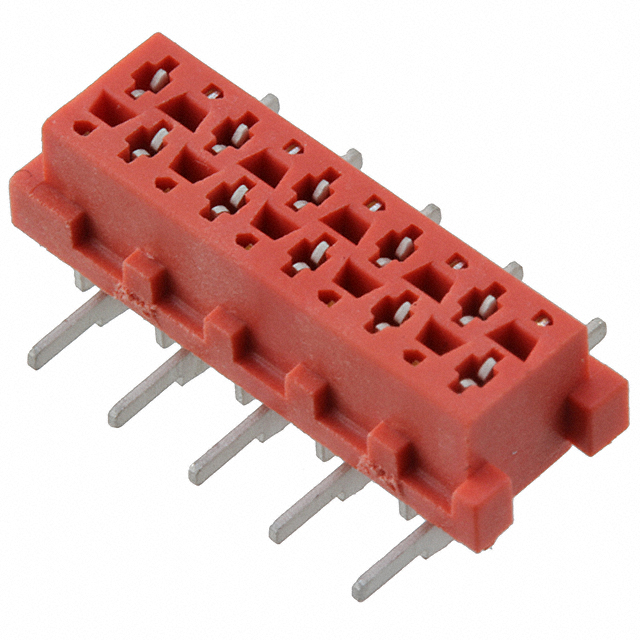

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-188431-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-188431-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-188431-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | M-MATCH FEM. BOTTOM ENTRY SMD IN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.274 | $1.223 | $1.019 | $0.866 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-188431-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | M-MATCH FEM. BOTTOM ENTRY SMD IN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40320 pcs | Data sheet | 188431 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Cut Tape (CT) |
| Other Names | A118006CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount, Through Board |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.154" (3.90mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Surface Mount, Through Board Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom Entry |
| Applications | Automotive, General Purpose |
