8-165049-2

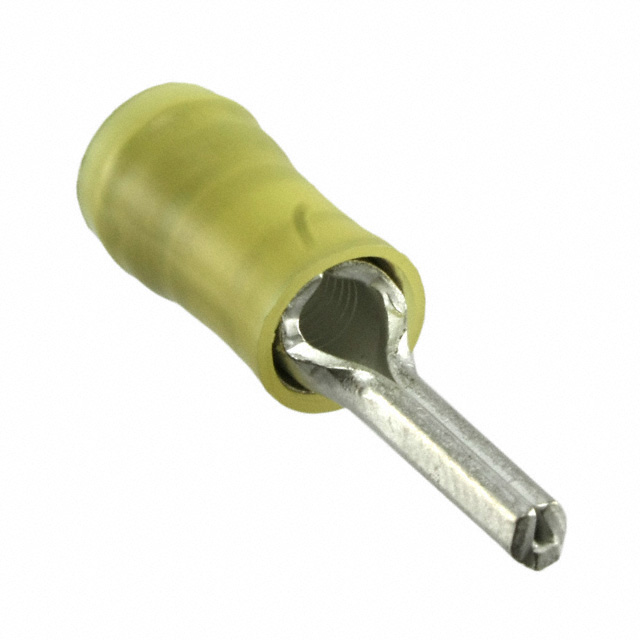

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-165049-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-165049-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-165049-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN WIRE PIN TERM 10-12AWG PIDG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $0.793 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-165049-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN WIRE PIN TERM 10-12AWG PIDG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45040 pcs | Data sheet | 165049 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG (2.7~6.6mm²) |
| Termination | Crimp | Series | PIDG |
| Pin Diameter | Circular - 0.102" (2.60mm) Dia | Packaging | Bulk |
| Other Names | 8-165049-2-ND A136684 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Termination | - | Length - Pin | 0.394" (10.00mm) |
| Length - Overall | 1.146" (29.11mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.248" (3.81mm ~ 6.30mm) | Insulation | Insulated |
| Features | Serrated Termination | Diameter - Barrel OD | - |
| Diameter - Barrel ID | - | Detailed Description | Wire Pin Terminal Connector 10-12 AWG (2.7~6.6mm²) PIDG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
