796689-6

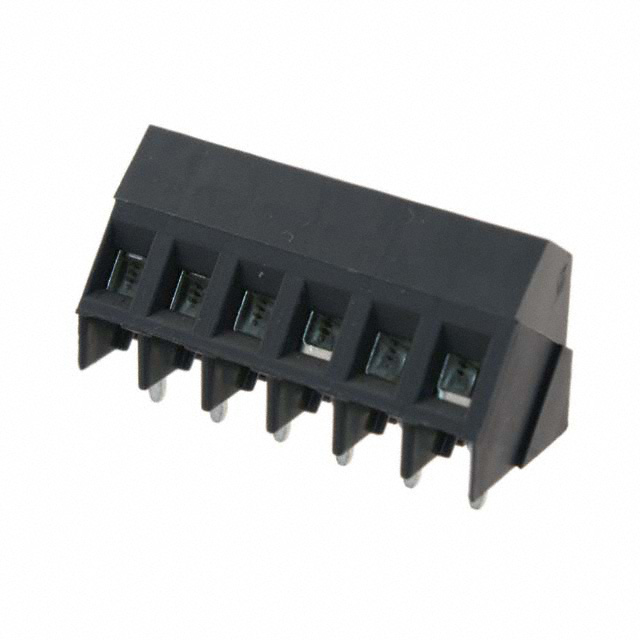

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796689-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796689-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796689-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK 6POS ANG ENT 5MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.819 | $1.388 | $1.30 | $1.155 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.13 | $1.042 | $0.942 | $0.835 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796689-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK 6POS ANG ENT 5MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44729 pcs | Data sheet | 796689Terminal Blocks, Eurostyle |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-30 AWG | Voltage | 300V |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Series | Buchanan |
| Screw Thread | M3 | Screw Material - Plating | Brass - Nickel Plated |
| Positions Per Level | 6 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | A98258 |
| Operating Temperature | - | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | 35° (145°) Angle with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 6 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current | 17.5A | Contact Material - Plating | Brass - Tin Plated |
| Color | Black | Clamp Material - Plating | Brass - Tin Plated |
