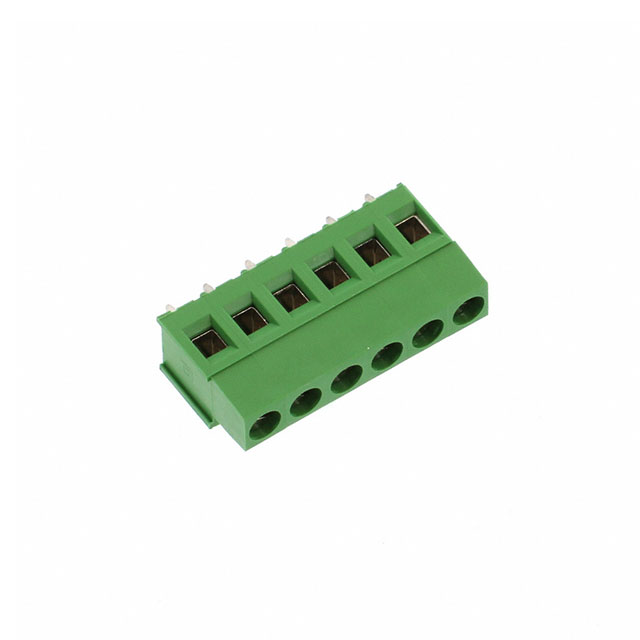

796683-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796683-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796683-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796683-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TERM BLCK 6POS 12-30AWG TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.503 | $1.145 | $1.072 | $0.953 | $0.932 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.86 | $0.777 | $0.689 | $0.647 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796683-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TERM BLCK 6POS 12-30AWG TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53504 pcs | Data sheet | 796683 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-30 AWG | Voltage | 300V |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Series | Buchanan |
| Screw Thread | M3 | Screw Material - Plating | Brass - Nickel Plated |
| Positions Per Level | 6 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 796683-6-ND A136647 |
| Operating Temperature | - | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 6 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole |
| Current | 17.5A | Contact Material - Plating | Brass - Tin Plated |
| Color | Green | Clamp Material - Plating | Brass - Nickel Plated |
