796500-1

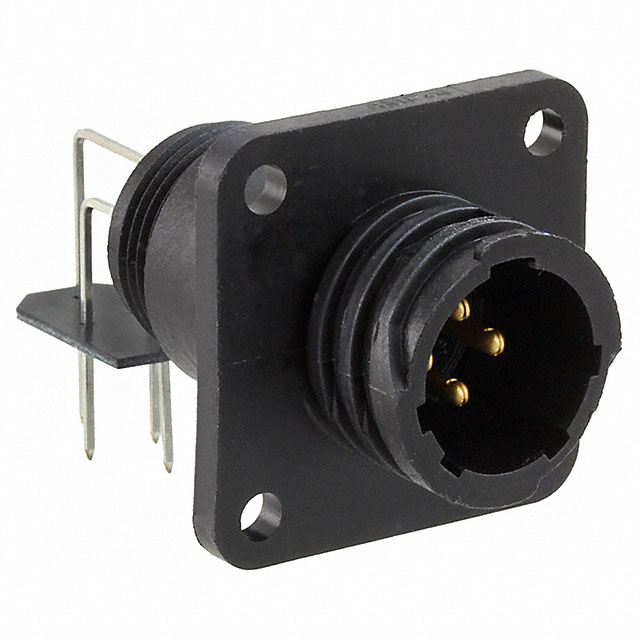

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796500-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796500-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796500-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT FMALE 7POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | 64 pcs | |
|---|---|---|---|---|---|
| $8.45 | $7.627 | $7.308 | $6.851 | ||
| 112 pcs | 256 pcs | 512 pcs | |||
| $6.623 | $6.257 | $6.075 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796500-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6437 pcs | Data sheet | 796500 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 13-7 |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | CPC Series 1 | Packaging | Tray |
| Other Names | A109478 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 7 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 13A |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Cable Opening | - |
| Backshell Material, Plating | - |
