796449-1

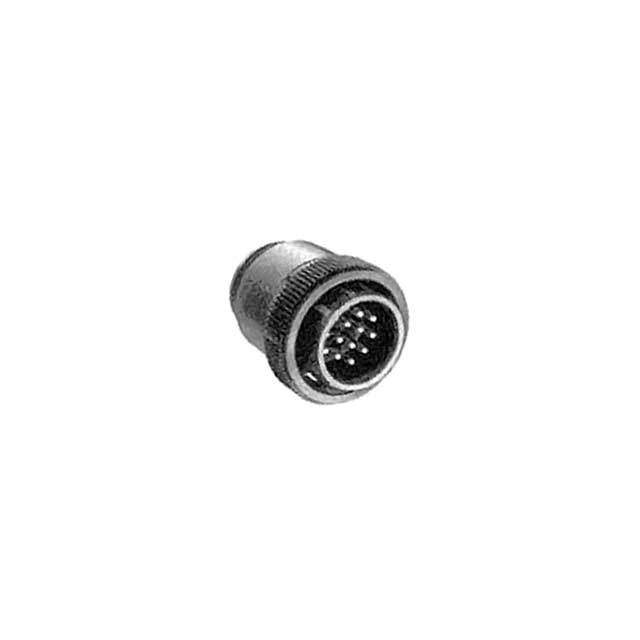

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796449-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796449-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796449-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSG MALE 14POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.073 | $4.611 | $4.496 | $4.15 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.92 | $3.574 | $3.343 | $3.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796449-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSG MALE 14POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12836 pcs | Data sheet | 796449 Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 17-14 | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | CPC Series 1 |
| Packaging | Bulk | Other Names | 796449-1-ND A122478 Q4486728 |
| Orientation | B | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 14 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | - |
| Includes | - | Housing Color | Black |
| Features | Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Coupling Nut Material, Plating | Polyester |
| Coupling Nut Diameter | 1.349" (34.26mm) | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Plug Housing |
