796271-1

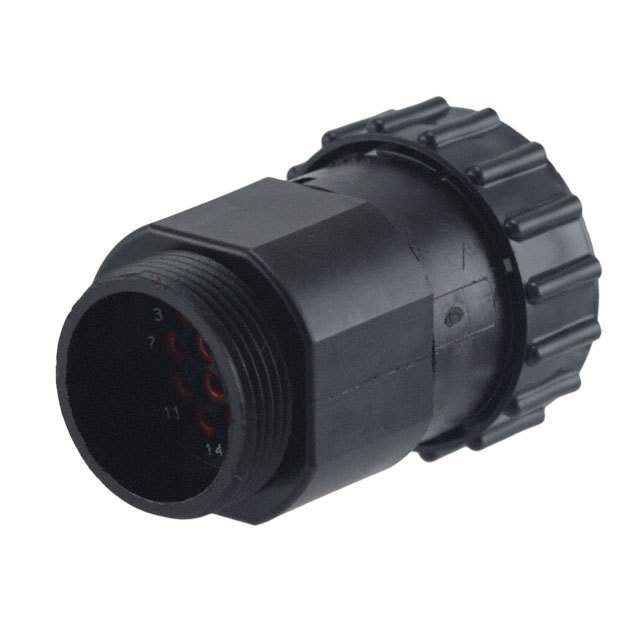

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796271-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796271-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796271-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSG MALE 14POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.638 | $8.70 | $8.335 | $7.814 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.554 | $7.137 | $6.929 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796271-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSG MALE 14POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4358 pcs | Data sheet | 796271 |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 17-14 | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | CPC Series 1 |
| Packaging | Bulk | Other Names | 7962711 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 14 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut | Coupling Nut Material, Plating | Polyphenylene (PPP) |
| Coupling Nut Diameter | 1.330" (33.78mm) | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Plug Housing |
