796188-1

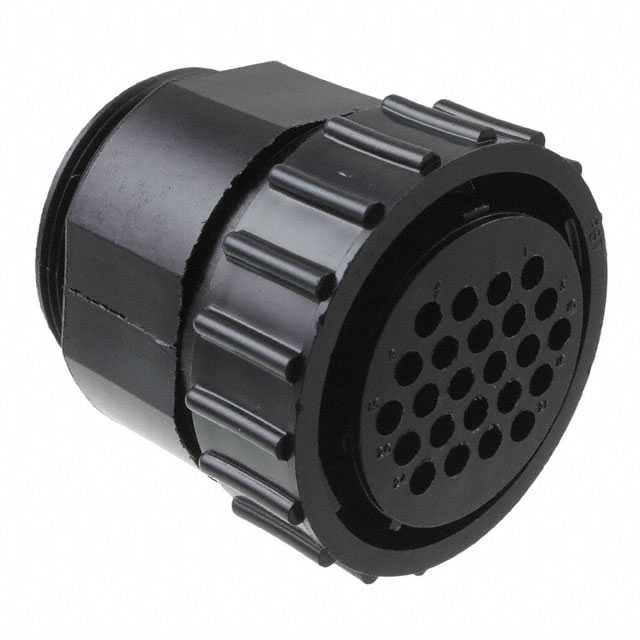

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796188-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796188-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 796188-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLG HSG FMALE 24POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.907 | $6.234 | $5.973 | $5.60 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.413 | $5.114 | $4.965 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 796188-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLG HSG FMALE 24POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6832 pcs | Data sheet | 796188 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 23-24 | Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - | Series | CPC Series 1 |
| Packaging | Bulk | Other Names | 796188-1-ND 7961881 A114494 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 24 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 24 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut | Coupling Nut Material, Plating | Polyester |
| Coupling Nut Diameter | 1.766" (44.86mm) | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Plug Housing |
