794071-2

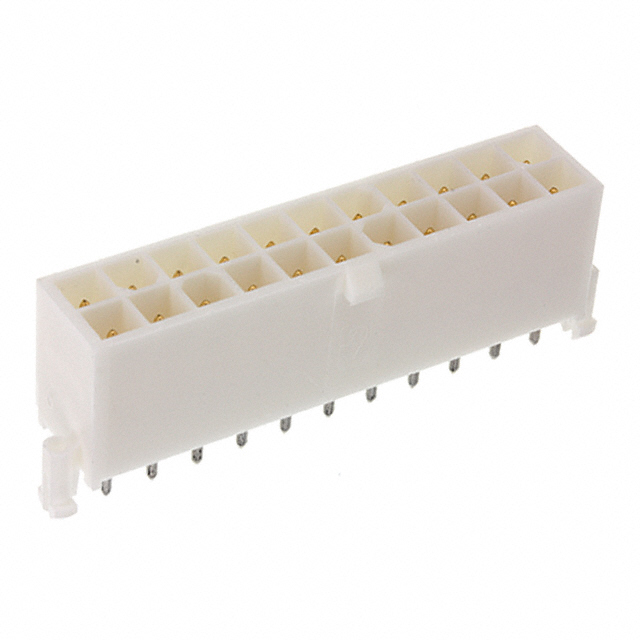

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 794071-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 794071-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 794071-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 22POS STR DUAL .163 AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $2.598 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 794071-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 22POS STR DUAL .163 AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 13602 pcs | Data sheet | 794071 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Universal MATE-N-LOK |
| Row Spacing - Mating | 0.163" (4.14mm) | Pitch - Mating | 0.163" (4.14mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 794071-2-ND A25626 |
Operating Temperature | -20°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.531" (13.50mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 22 position 0.163" (4.14mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose |
