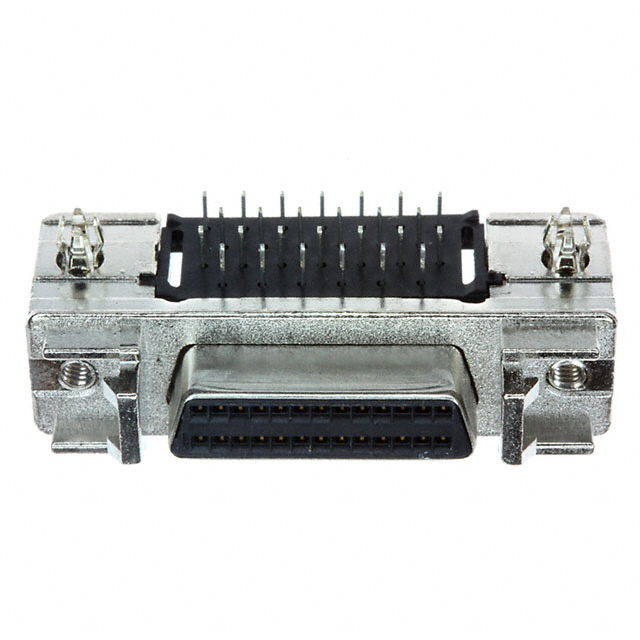

787171-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 787171-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 787171-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 787171-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-TYPE RCPT 26POS R/A SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 28 pcs | 56 pcs | |
|---|---|---|---|---|---|
| $3.189 | $3.05 | $2.772 | $2.634 | ||
| 112 pcs | 252 pcs | 504 pcs | 1008 pcs | ||
| $2.564 | $2.287 | $2.149 | $1.899 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 787171-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 26POS R/A SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 16684 pcs | Data sheet | 787171 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 30V | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE .050 III | Packaging | Tube |
| Other Names | 787171-2-ND 7871712 A23733 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 26 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 37 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (2-56); Latchblocks, Rails |
| Features | Board Lock, Shielded | Detailed Description | 26 Position D-Type Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Type |
| Color | Black | Backset Spacing | 0.146" (3.71mm) |
