786554-1

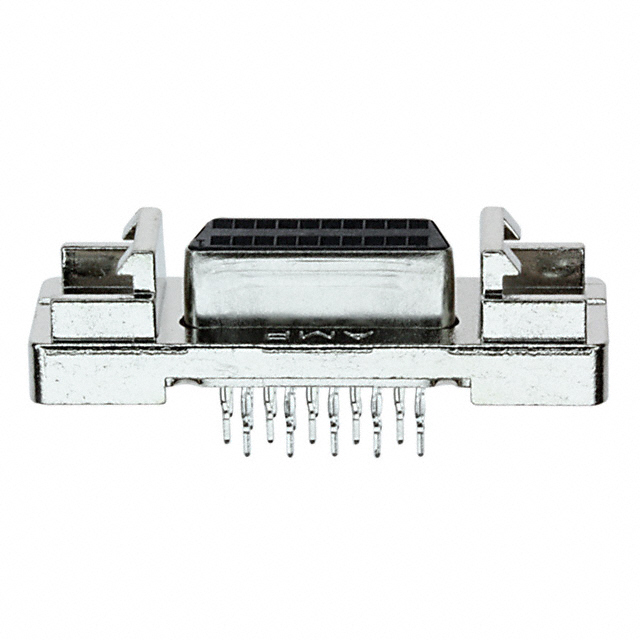

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 786554-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 786554-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 786554-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-TYPE RCPT 20POS VERT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1008 pcs | ||||
|---|---|---|---|---|---|
| $1.627 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 786554-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 20POS VERT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 22923 pcs | Data sheet | 786554 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 30V | Termination | Press-Fit |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE .050 III | Packaging | Tube |
| Other Names | 786554-1-ND A23751 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 35 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polyphthalamide (PPA) | Flange Feature | Housing/Shell (2-56); Latchblocks, Rails |
| Features | Shielded | Detailed Description | 20 Position D-Type Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Type |
| Color | Black | Backset Spacing | - |
