776280-2

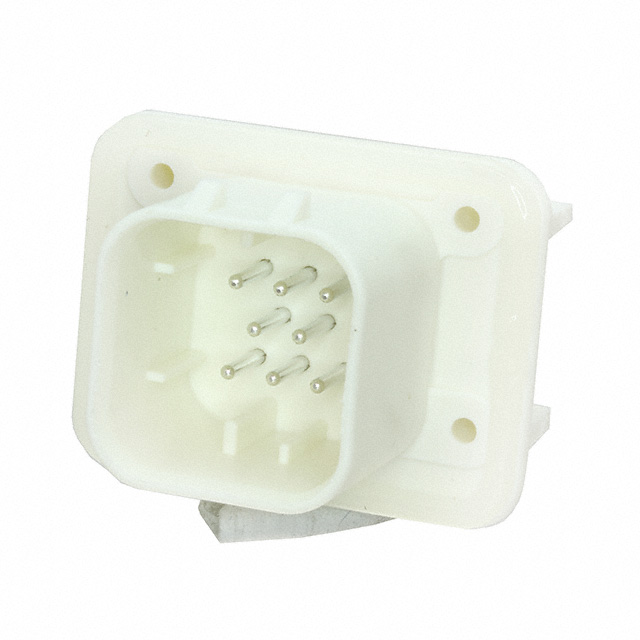

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 776280-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 776280-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 776280-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 8 POS RTANG HDR ASSY W/GASKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.787 | $2.673 | $2.208 | $1.859 | $1.627 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 776280-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 8 POS RTANG HDR ASSY W/GASKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22826 pcs | Data sheet | 776280 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMPSEAL |
| Row Spacing - Mating | 0.157" (4.00mm) | Pitch - Mating | 0.157" (4.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 776280-2-ND A129040 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | - | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Sealed |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 8 position 0.157" (4.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, Industrial |
