776231-1

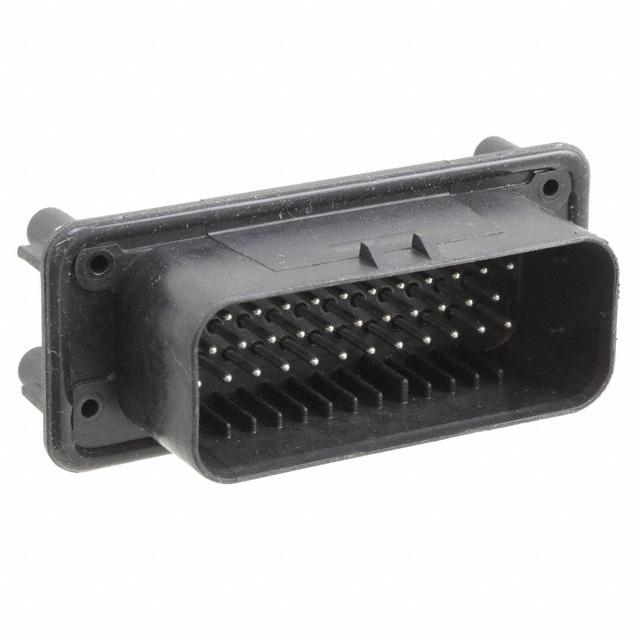

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 776231-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 776231-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 776231-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 35POS VERT TIN BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.029 | $3.853 | $3.503 | $3.328 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.24 | $2.89 | $2.715 | $2.40 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 776231-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 35POS VERT TIN BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14426 pcs | Data sheet | 776231 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMPSEAL |
| Row Spacing - Mating | 0.157" (4.00mm) | Pitch - Mating | 0.157" (4.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 776231-1-ND 7762311 A106461 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 35 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | - |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange, Sealed | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, Industrial |
