Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 770974-2

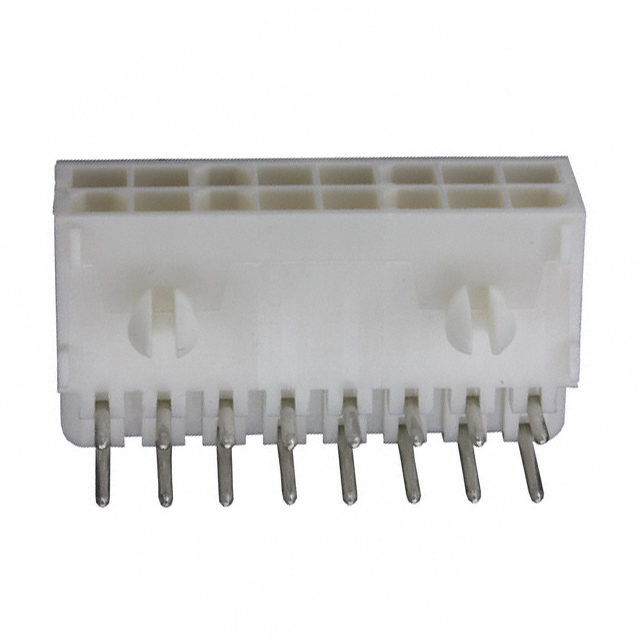

770974-2

770974-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 770974-2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 770974-2
Manufacturer Agastat Relays / TE Connectivity
Description CONN HDR 16POS R/A DUAL .163 AU
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
In Stock 8844 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs
$4.977$4.525$3.846

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$4.977

Product parameter

Part Number 770974-2 Manufacturer Agastat Relays / TE Connectivity
Description CONN HDR 16POS R/A DUAL .163 AU Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 8844 pcs Data sheet 770974 Drawing
Category Connectors, Interconnects Voltage Rating 600VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini-Universal MATE-N-LOK
Row Spacing - Mating 0.163" (4.14mm) Pitch - Mating 0.163" (4.14mm)
Packaging Bulk Overall Contact Length -
Other Names 7709742
A25646		 Operating Temperature -20°C ~ 105°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 16 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Insulation Material Polyamide (PA), Nylon Insulation Height 0.386" (9.80mm)
Insulation Color White Ingress Protection -
Features Board Lock Fastening Type Locking Ramp
Detailed Description Connector Header Through Hole, Right Angle 16 position 0.163" (4.14mm) Current Rating Varies by Wire Gauge
Contact Type Male Pin Contact Shape Circular
Contact Material Brass Contact Length - Post 0.145" (3.68mm)
Contact Length - Mating - Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Finish Thickness - Mating 30.0µin (0.76µm) Contact Finish - Post Tin-Lead
Contact Finish - Mating Gold Connector Type Header
Applications General Purpose
