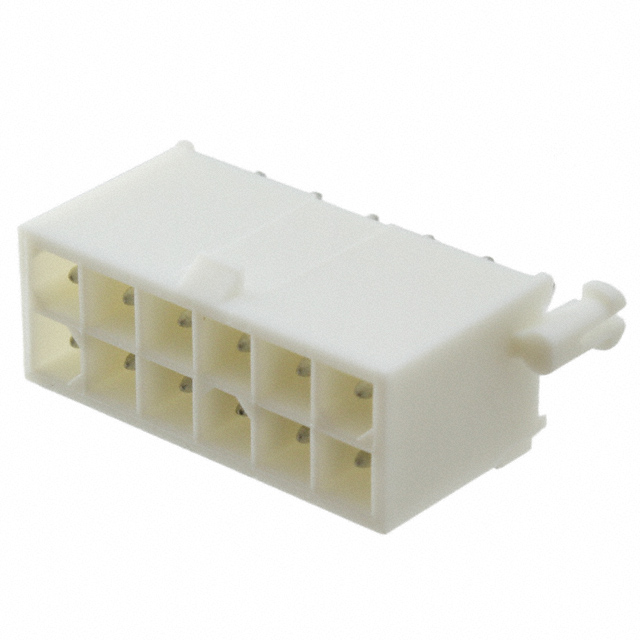

770621-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 770621-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 770621-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 770621-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 12POS STR DUAL .163 TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1400 pcs | ||||
|---|---|---|---|---|---|
| $0.553 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 770621-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 12POS STR DUAL .163 TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 68862 pcs | Data sheet | 770621 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Universal MATE-N-LOK |
| Row Spacing - Mating | 0.163" (4.14mm) | Pitch - Mating | 0.163" (4.14mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 770621-1-ND 7706211 A25611 |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.531" (13.50mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 12 position 0.163" (4.14mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | General Purpose |
