770262-1

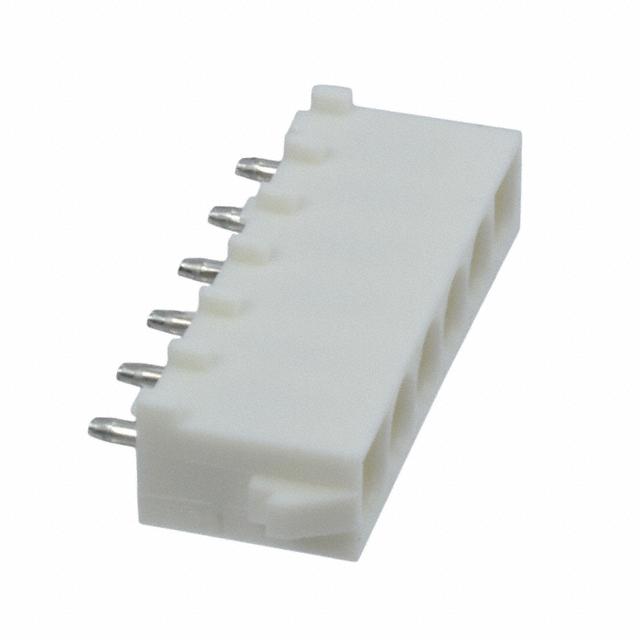

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 770262-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 770262-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 770262-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 6POS UNIVER MATE-N-LOK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.66 | $0.598 | $0.561 | $0.536 | $0.512 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.463 | $0.427 | $0.366 | $0.341 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 770262-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 6POS UNIVER MATE-N-LOK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57564 pcs | Data sheet | 770262 DrawingUniversal MATE-N-LOK Instr Sheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Universal MATE-N-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 770262-1-ND A122476 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.580" (14.73mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 6 Position Header Connector 0.250" (6.35mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.155" (3.94mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
