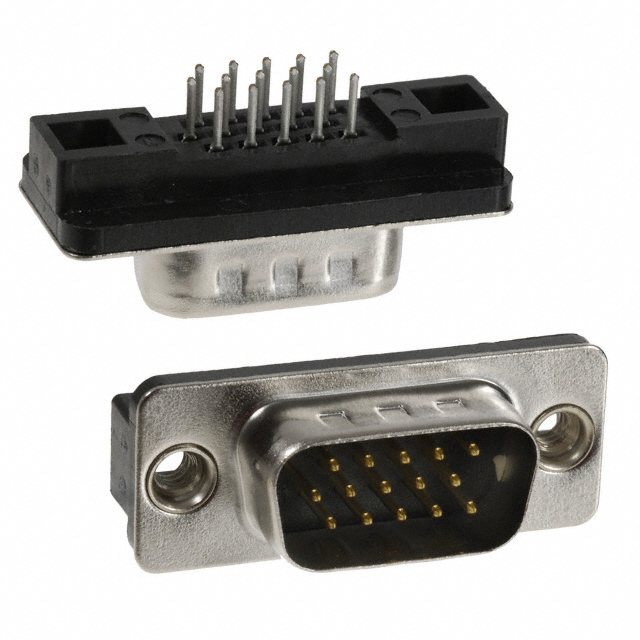

749798-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 749798-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 749798-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 749798-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB HD PLUG 15P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 749798-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15P VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 5298 pcs | Data sheet | 749798 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE HD-22 | Packaging | Tray |
| Other Names | A23071 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Grounding Indents |
| Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector | Current Rating | 1.5A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
