747954-1

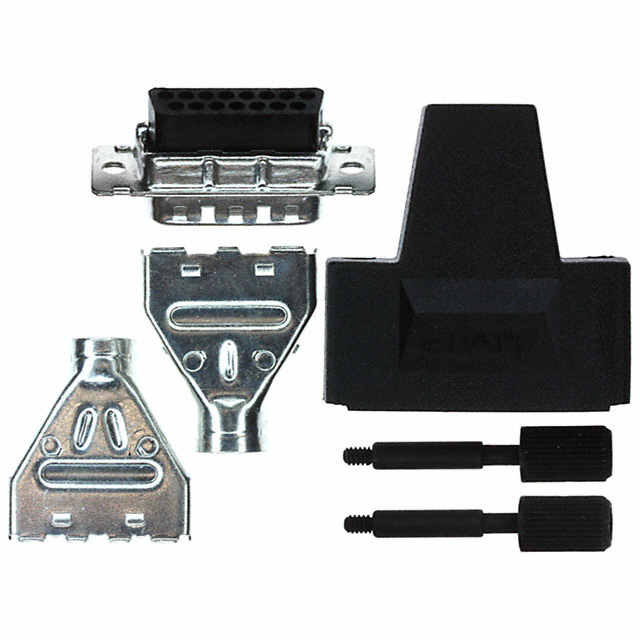

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 747954-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 747954-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 747954-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 15POS W/O CONT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 747954-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS W/O CONT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4734 pcs | Data sheet | 747954 |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 2 (DA, A) |
| Shell Material, Finish | Steel, Tin Plated | Shell Finish Thickness | - |
| Series | AMPLIMITE HDP-20 | Packaging | Bulk |
| Other Names | A23490 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 15 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Flange Feature | Cable Side (4-40) | Features | Backshell, Grounding Indents, Shielded |
| Dielectric Material | Polyamide (PA), Nylon, Glass Filled | Detailed Description | Plug for Male Contacts Housing D-Sub Connector 15 Position |
| Contact Type | Signal | Connector Type | Plug for Male Contacts |
| Connector Style | D-Sub | Color | Black |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
