747515-2

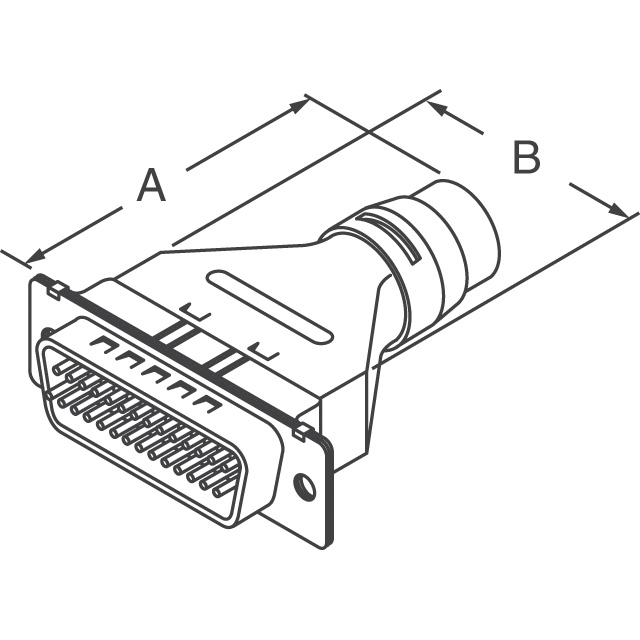

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 747515-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 747515-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 747515-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 9POS STR IDC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 747515-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS STR IDC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5452 pcs | Data sheet | 747515 |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Voltage Rating | 250V | Termination | IDC, Discrete Wire |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDE-20 | Packaging | Bulk |
| Other Names | A23518 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Backshell, Grounding Indents, Shielded |
| Detailed Description | 9 Position D-Sub Plug, Male Pins Connector | Current Rating | Varies by Wire Gauge |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
