746861-2

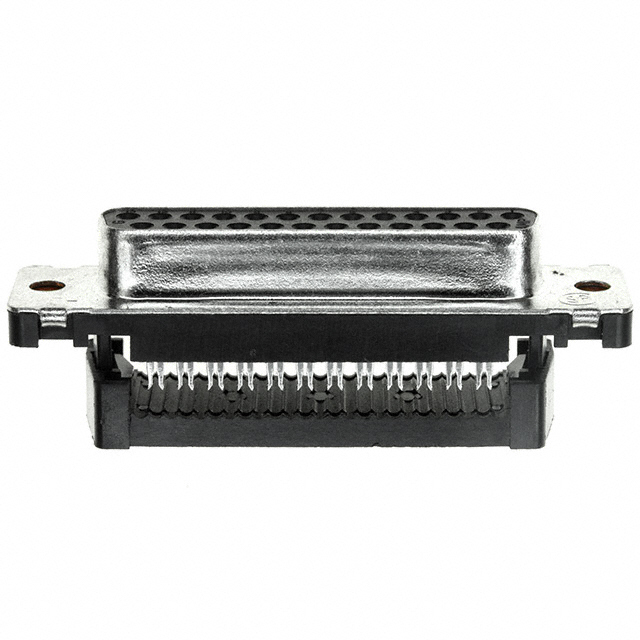

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 746861-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 746861-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 746861-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 25POS STR IDC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 746861-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS STR IDC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5832 pcs | Data sheet | 746861 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDF-20 | Packaging | Tube |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Feed Through | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 1.25A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
