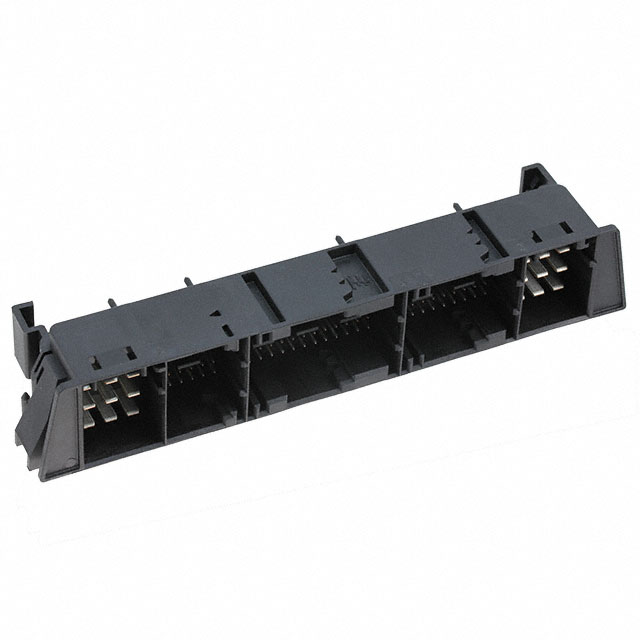

7-967288-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7-967288-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7-967288-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7-967288-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 134POS GOLD TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.636 | $3.792 | $3.581 | $3.055 | $2.802 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 7-967288-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 134POS GOLD TAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12536 pcs | Data sheet | 967288 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro Quadlok |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 7-967288-1-ND A123185 |
Operating Temperature | -40°C ~ 130°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 134 (9 + 24 + 52 + 40 + 9) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.138" (28.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 134 (9 + 24 + 52 + 40 + 9) position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive |
